Cable Trays

CABLE TRAYS

VALTREE Global Private Limited, a part of Valtree Group of companies and having a high vision and innovation as its USP, has been a key player in Electrical & Solar Industries with its presence in Power Distribution and Communication Sectors. Our products includes Cable Trays, Solar Modulating Structures, Gratings and Earthing Materials. At Valtree Group, we believe only and only at TOP Quality which satisfies totally our Valued Customers and End Users.

3
3

A Cable Tray System is used in the Electrical Wiring of Buildings to Support insulated electric cables used for power distribution and communication. Cable Trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction.

We provide our Clients a wide range of cable trays which are available in wide variety of quality metals. and finishes.

Our range of cable trays includes

Perforated Cable Tray

Perforated Cable Trays are used for instrumentation, control as well as power cables. These Cable Trays provide excellent ventilation, it enhances life of cables and it can be fixed to any structure.

3
  • Standard Length : 2500mm
  • Height : 30mm, 40mm, 50mm, 75mm and 100mm
  • Width : 40mm, 50mm, 75mm, 100mm, 150mm, 300mm, 450mm, 600mm, 750mm and 1000mm
  • Finish : Pre Galvanized as per IS – 277 Powder Coated Painted and Hot Dipped Galvanized as per IS – 2629

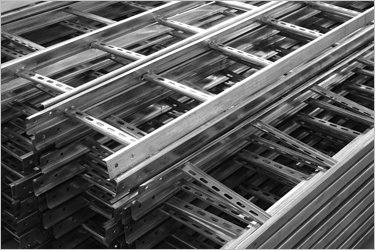

Ladder Type Cable Tray

Ladder Type Cable Trays provide a support system for managing cables in a building or other places. These type of cable tray provide an instant approach to maintain and replacement of cables without any difficulty. They give excellent ventilation and enhance life of cables.

3
  • Standard Length : 2500mm
  • Height : 30mm, 40mm, 50mm, 75mm and 100mm
  • Width : 100mm, 150mm, 300mm, 450mm, 600mm, 750mm and 1000mm
  • Finish : Pre Galvanized as per IS – 277, Powder Coated, painted and Hot Dipped Galvanized as per IS – 2629

Race ways / Solid Bottom Type Cable Trays

Solid Bottom Type Cable Trays are typically used in applications that generate minimum heat, such as Electrical, Data & Telecommunication, they offer maximum protection for wires. They are also known as Raceways. Raceways are an affordable way to run networking and power cables throughout IT Companies, Commercial and Industrial environments. We have outstanding varieties of Floor Raceways and Ceiling Raceways.

3
  • Standard Length : 2500mm
  • Height : 30mm, 40mm, 50mm, 75mm and 100mm
  • Width : 40mm, 50mm, 100mm, 150mm, 300mm, 450mm, 600mm, 750mm and 1000mm
  • Finish : Pre Galvanized as per IS – 277, Powder Coated

Cable Tray Covers

3
  • Standard Length : 2500mm
  • Thickness : 1.6mm To 3.00 mm
  • Width : 50mm, 100mm, 150mm, 300mm, 450mm, 600mm, 750mm and 1000mm
  • Finish : Pre Galvanized as per IS – 277, Powder Coated, Enamel Painted, Hot Dipped Galvanised

Coupler Plates

3

Applications of Coupler Plates : As the standard length of cable trays are 2500mm to join every two cable trays coupler plates are used. The thickness of coupler plates will vary 2mm to 3mm depending on customer requirement & design.


Cable Tray Accessories

Perforated Cable Tray Accessories

3
  • 30deg, 45deg, 60deg, 90deg Horizontal Elbow Left / Right Elbow
  • 30deg, 45deg, 60deg, 90deg Vertical Outside / Inside Elbow
  • Horizontal Cross
  • Left / Right Hand reducer
  • Equal Reducer
  • Horizontal Tee

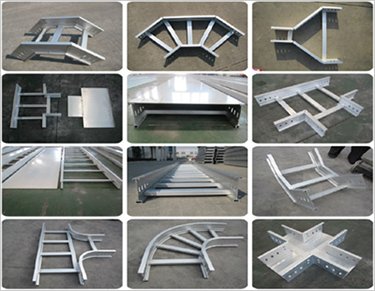

Ladder Type Cable Tray Accessories

3
  • 30deg, 45deg, 60deg, 90deg Horizontal Elbow
  • 30deg, 45deg, 60deg, 90deg Vertical Outside / Inside Elbow
  • Horizontal Cross
  • Horizontal Tee
  • Equal Reducer
  • Left / Right Hand reducer
